Product Introduction

The BT3500-OZ uv ozone analyzer is mainly used for detecting the ozone concentration at the outlet of the ozone generator.It uses an ultraviolet lamp tube as the light source system,with a service life of over 30,000 hours.The measurement data is stable and highly accurate.It adopts an integrated split-flow layer light pool structure,featuring no leakage,high pressure resistance,resistance to large flow sampling gas impact,easy cleaning,convenient maintenance,and simple operation.During use,the equipment automatically calibrates the zero point,ensuring the accuracy of the concentration and avoiding zero drift.It has a 4-20mA signal output.

The BT3500-OZ uv ozone analyzer is a high-tech product that specifically applies the technology of photoelectric conversion detection.It adopts advanced microprocessor control technology and long-life pulsed light source.It utilizes the characteristic absorption of ozone to ultraviolet light,and is designed as an ozone analyzer based on the Beer-Lambert law.

Application Fields

Ozone generator manufacturers, municipal water industry, industrial wastewater industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, fragrance synthesis industry, etc. all use ozone generators in their respective industries.

Product Features

●Detection principle:Based on the Lambert-Beer law,precise measurement is carried out through the principle of photometric absorption.

●Measurement method:Dual-path ultraviolet light absorption method,with high measurement accuracy and temperature and pressure coefficient compensation.

●Light source system:Imported long-life ultraviolet LED(wavelength 254nm);

●Light cell system:Separated light cell technology,no leakage,high pressure resistance,and resistance to large flow sampling gas impact.

●Intelligent compensation:Built-in automatic light source compensation function.

●Automatic zero calibration:The equipment automatically calibrates once every 72 hours to ensure the stability of the zero point and the accuracy of the detection concentration.

●Output function:4-20mA current signal,RS485 communication(optional);

●Data display:5.0-inch touch screen,convenient for user operation.

Technical Specifications

●Range:0-200mg/NL;

●Concentration units:mg/NL,g/Nm3,%(wt)(optional);

●Display resolution:0.1mg/NL,0.1g/Nm3,0.01%(wt);

●Accuracy:±3%

●Signal output:Differential 4-20mA,linear

●Response time:2S;

●Zero drift:≤1%(FS/month)

●Working time:Continuous online

●Linear error:≤1%

●Gas flow rate:0.5±0.2L/min;

●Input gas pressure:≤1bar(0.1MPa);

●Power supply:AC 220V±10%50Hz;

●Overall weight:6.5kg;

●Overall size:340mm(length)×270mm(width)×130mm(depth)

●Installation opening size:300mm(length)×175mm(width)

●Inner diameter of gas input and output ports:4mm,outer diameter:6mm

●Product return to manufacturer for calibration cycle:recommended 12 months

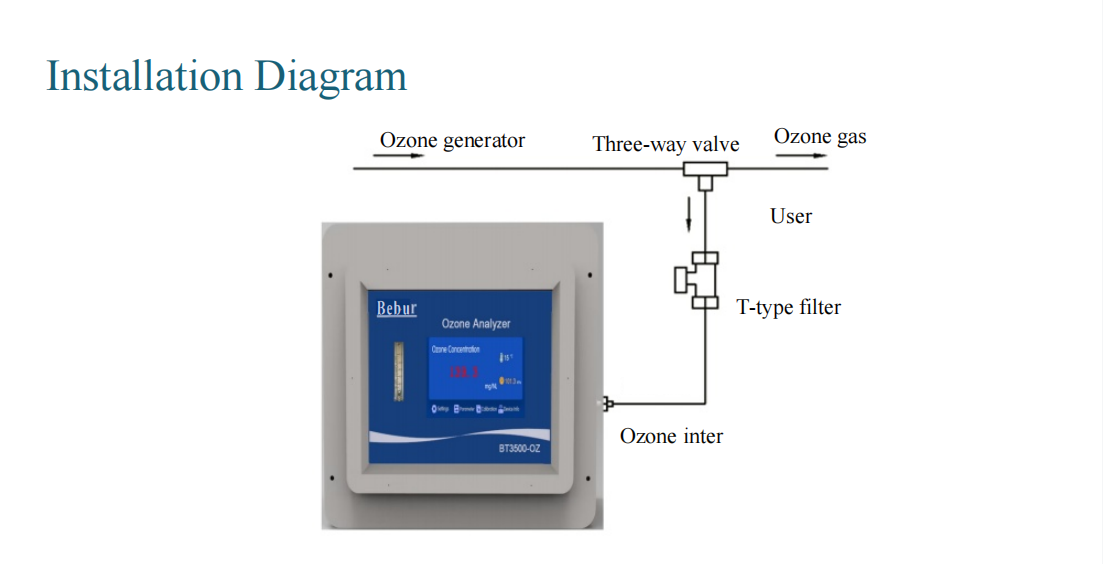

Installation Method
